657 // Colour TBA The '657' frame has internal gussets, is triple butted on the downtube and toptube, has double butted stays and an internally machined head tube. It is also fully heat treated AFTER welding. > 20.6/ " or 21" top tube lengths> 75 head tube angle > 71 seat tube angle > 7.25" seat tube length > 13.25" - 13.5" rear end > Mid BB and internal headset > Tapered rear stays > Offset tubing with internal gussets > Built in external seat clamp with removable nut + bolt > Removable brake lugs and gyro tabs > Fully heat treated after welding |
|
|

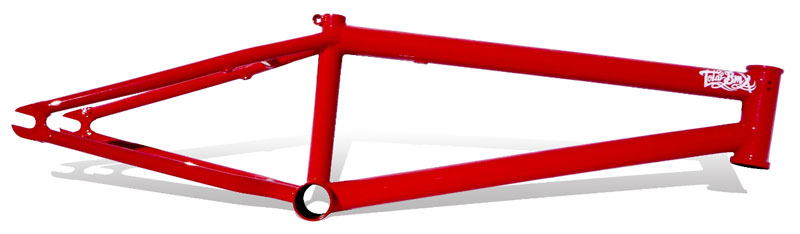

Voltron // Colour TBA This frame was designed by Mark Webb. It has all the build features of the 657 but is slightly taller and comes with an external seat clamp. It also has tapered seat stays with 4 mm dropouts. > 20.6/ " or 21" top tube lengths> 75.2 head tube angle > 71 seat tube angle > 8" seat tube length > 13.25" - 13.5" rear end > Mid BB and internal headset > Tapered rear stays > 4mm dropouts > Offset tubing with internal gussets > Built in external seat clamp with removable nut + bolt > Removable brake lugs and gyro tabs > Fully heat treated after welding > Weight 4.65lbs for 20.6" |
