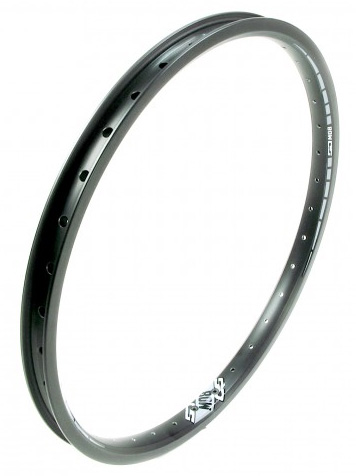

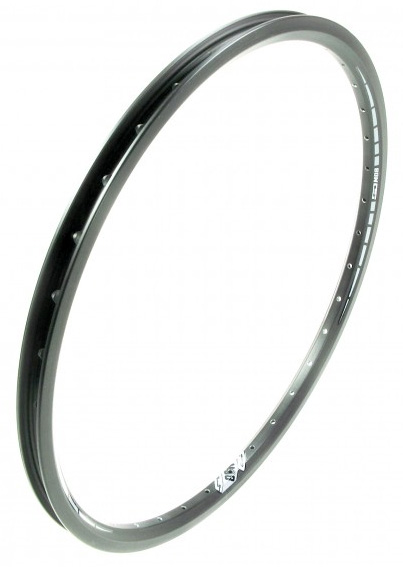

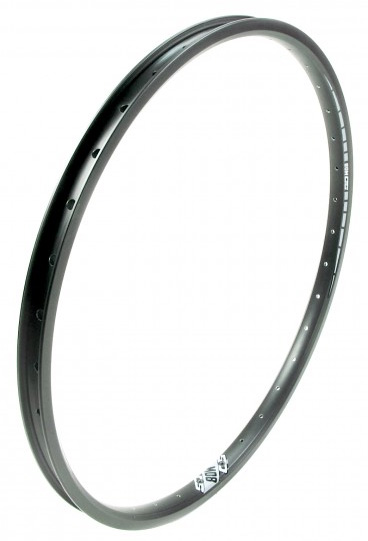

SD Race Rim M08 Black

SD M08 Alloy rim black

Sizes:

20 x 1 1/8" 28 Hole
Width 22mm
ERD 428mm
Double wall
Weight 366g
Spoke length to SD Ace front hub:
0x 198mm
2x 204mm
3x 212mm
Spoke length to SD Ace rear hub:
2x non drive 200mm / drive 198mm
3x non drive 210mm / drive 210mm

20 x 1 3/8" 36 Hole
Width 22mm
ERD: 428mm
Double wall
Weight 454g
Spoke length to SD Ace front hub:
0x 198mm
2x 202mm
3x 207mm
Spoke length to SD Ace rear hub:
2x non drive 196mm / drive 193mm
3x non drive 203mm / drive 201mm

20 x 1.75" 36 Hole
Width 28mm
ERD 384mm
Double wall
Weight 396g
Spoke length to SD Ace front hub:
Radial 176mm
2x 180mm
3x 185mm
Spoke length to SD Ace rear hub:
2x non drive 177mm / drive 173mm
3x non drive 184mm / drive 182mm
4x non drive 192mm / drive 191mm

24 x 1.75" 36 Hole
Width 28mm
ERD 488mm
Double wall
Weight 570g
Spoke length to SD Ace front hub:
0x 227mm
2x 231mm
3x 236mm
Spoke length to SD Ace rear hub:
2x non drive 226mm / drive 222mm
3x non drive 233mm / drive 230mm
4x non drive 241mm / drive 240mm
